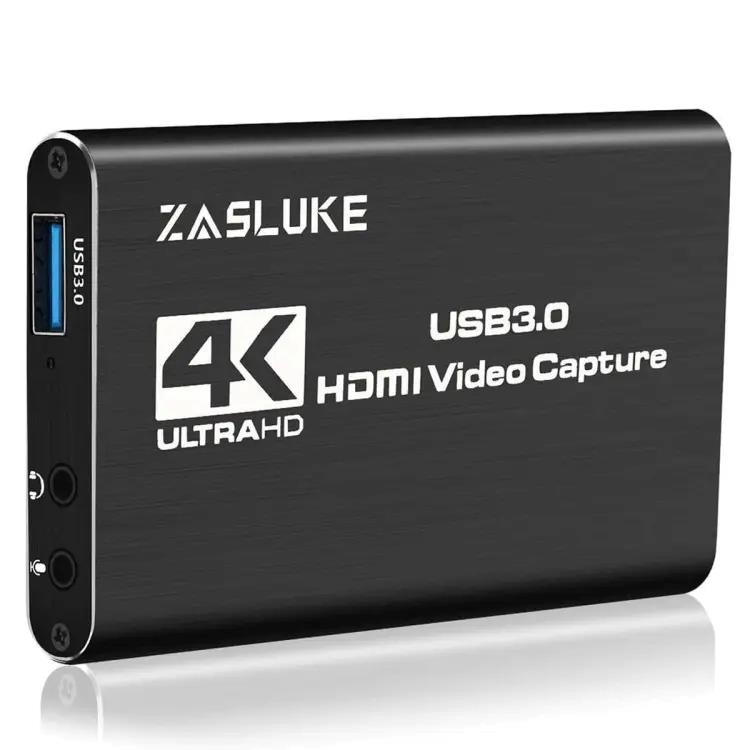

4K 1080P 60fps Audio Video HDMI Capture Card
Supports windows 7,8,10, for Mac OS X 10.9 or later, Linux, Linux OS ( when your device is type c port, we also provide USB 3.0 to Type C Cable ), Desktops and laptops. Recording Videos, streaming to Various Live Board cast Platforms!
It must be connected to the computer's USB 3.0 or type-c (USB C ) interface use.
HDMI Input : Our item 's HDMI can work for Switch, PS3 ,PS4, Wii U, Xbox 360, Xbox One game consoles, laptop, DVD player, Media player, TV box , Blu-ray Player, DVD Player, TV-Box, Digital Camera, Video Camera that have HDMI input port;
HDMI Output : Our item 's HDMI can work for all TV, Monitor, Projector, LCD and other displays that equipped with HDMI output port;
Notes: Built-in a HDMI OUTPUT port, it is convenient for you to check the video or game on TV set at the same time;
Identify the Capture Card
Enter OBS settings, select ‘usb 3.0 HD Video Capture’ in the device column. As shown in Figure 1-1.
Set the resolution and the FPS
1. Custom Resolution: First set Resolution/FPS Type to custom mode. As shown by the white arrow in Figure 2-1.
2. Set Resolution: Select the appropriate resolution at the up and down arrows on the far right of this column. As shown by the yellow arrow in Figure 2-1.
3. Set FPS: Select the appropriate frame rate at the up and down arrows on the far right of this column. As shown by the red arrow in Figure 2-1.
Set the audio and micro
1. Select the "Output Desktop Audio" item at the up and down arrows on the far right of the "Audio Output Mode" column.As shown by the yellow arrow in Figure 3-1.
2. Mark the "√" in the red box. As shown in Figure 3-1.
3. A. Select the MIC input of the collector at the up and down arrows on the far right of the "Audio Device" column. As shown in Figure 3-1.
Special Note:
- When you unplug or replace the device, please reopen the OBS settings page to reset and reactivate the device (Mark the "√" in the red box in Figure 4-1).
- Please connect your Nintendo Switch and other input devices to our capture card first, and then connect the capture card to your computer and other output devices
- If you need to capture 1080P@60Hz video signals, please force the signal source to output 4K@60Hz or 1080P@60Hz, and then set the resolution.
Game console with HDMI input only, such as Wii U, PS4, PS3, Xbox One, Xbox 360, Wii, DVD, camera, ZOSI security camera, DSLR and set top box etc.
OBS Studio (windows,OS X); Windows Media Encoder (Windows); Adobe Flash Media Live -Encoder (Windows, OS X); Real Producer Plus (Windows); VLC (Windows, OS X, Linux); QuickTime Broadcaster (OS X); QuickTime Player (OS X); Wirecast (Windows,OS X); Mix(Windows); Potplayer(Windows)and etc.
- Development interface compatibility:
DirectShow (Windows), DirectSound (Windows), V4L2 (Linux), ALSA (Linux) OS X (QuickTime).
