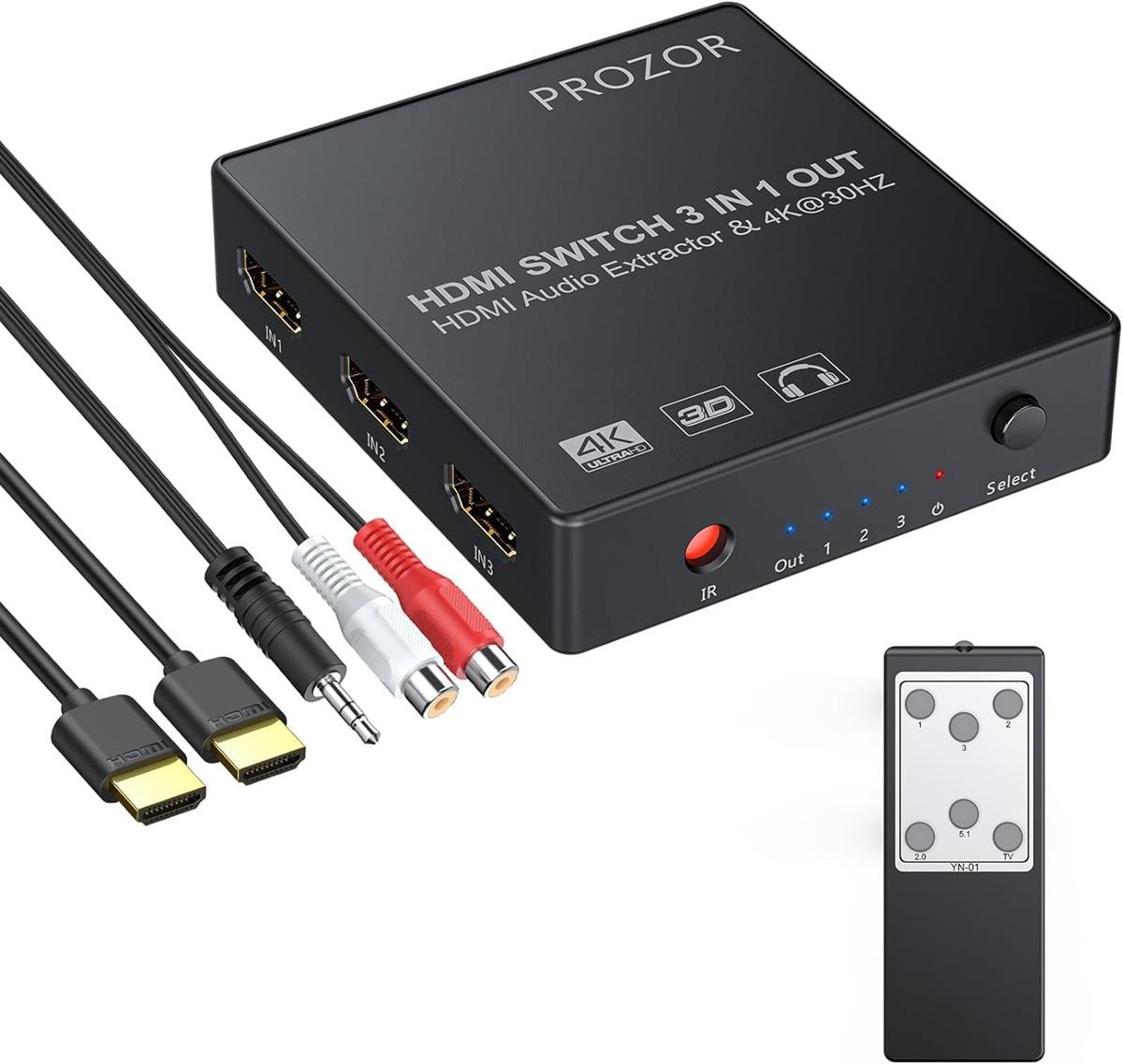

Prozor 3x1 HDMI Switch with Audio Extractor, 3 Port 4K HDMI Switcher HDMI Audio Converter, with IR Remote and 3.5mm Male to 2 RCA Female Stereo Audio Cable

3x1 HDMI Switch with Audio Extractor: support deep color 30bit, 36bit, 48bit per pixel. 3.5mm audio output supports 2CH PCM stereo audio only. Toslink Output supports 2CH PCM, 5.1CH Dolby Digital, DTS Audio
HDMI 1.4 Version with HDMI Cable: This HDMI Switch input resolution: up to 4K@30hz,1080P,3D,supports Video EDID Pass Through, Audio EDID Settings: 2CH and 5.1CH, Our HDMI Switcher NOT support HDCP 2.2. 【If your source device is 4K@60hz(HDMI 2.0 and HDCP2.2),please set up the resolution to 4K@30hz】
3 HDMI input converter to 1 HDMI Display(Pass Mode)+ optical Toslink Output(5.1CH Mode) or stereo audio output(2CH Mode) come with RCA Cable; Automatic, Manual or Remote Switching.【Please use 5V 1A power adapter to power our product. Do not use other plug. Do not directly power the switch by the USB port of yourTV】
High Quality ABS plastic casing, 24K gold-plated connectors; Reduce signal loss, get a better output signal. 【Note: The switch cann't be used with other converter, such as HDMI
Brand: A2Z
Warranty: No Warranty
Availability: In Stock
Rs. 7,500


PST073a

5

9

HDMI Input 1-3 Port, Input Signal from PS3 PS4, Apple TV, Xbox one, Amazon Fire TV, Blu-ray/DVD/HD player, Laptop and Other HDMI Device.

3 HDMI input, one HDMI output, one Optical Toslink output and stereo output with RCA Cable.

Please use 5V 1A power adapter to power our product. Do not use other plug. Do not directly power the switch by the USB port of your TV.

Infrared remote control indicator; Input LED Indicator 1-3; Output LED Indicator; Power LED indicator; Switch Button.

Input:3 HDMI
Output:one HDMI Display(Pass Mode)+ optical Toslink (5.1CH Mode) + stereo audio (2CH Mode), Manual/Remote Switching
HDMI resolution:2160p@30Hz/1080p@50/60Hz/1080i/720p/1576i/480p/480i
Support video color format:24bits/deep color 30bit,36bit
Audio output:3.5mm Earphone+SPDIF
3.5mm audio output support:2CH PCM stereo audio only (If no sound output from 3.5mm, please set the input device audio format to PCM/LPCM)
Toslink output support:2CH PCM, 5.1CH Dolby Digital, DTS Audio
HDMI Switch input resolution:up to 4K@30hz,1080P,3D,supports Video EDID Pass Through
Audio EDID Settings:2CH and 5.1CH, NOT support HDCP 2.2
Widely Compatible:for various HDMI source devices like Roku or Chromecast without dedicated audio output as well as Blu-ray/ DVD/ HD player, cable/satellite box, Amazon Fire TV,PS3/4, Apple TV, Xbox, PC/laptop, HD camera, HD DVR etc.

PST073a

PST073a

PST073a

Support HDMI 1.4:

Input resolution up to 4K@30hz,2016P,3D, Supports Video EDID Pass Through, Audio EDID Settings: 2CH and 5.1CH

NOT Support HDCP 2.2

When select 5.1CH mode, whether spdif outputs 5.1CH audio depends on whether your input source contains 5.1CH audio:

a). If it contains, SPDIF OUT outputs 5.1CH audio while STEREO OUT interface mutes.

b). If it not contains, SPDIF OUT and AUDIO OUT all output 2.0 CH audio signal.

This HDMI switch is not compatible with Netflix and YouTube video websites.

Can NOT be used with other converter, such as HDMI to DVI Converter.

Note:

1.If your source device is 4K@60hz(HDMI 2.0 and HDCP2.2),please set up the resolution to 4K@30hz or 1080p@60hz to use this 3 ports HDMI switch.

How to set the resolution to fit our HDMI switch:

a). Connect your "4k@60hz HDMI 2.0 input device" directly to the TV

b). Then go to "setting-picture-resolution(choose "Auto")-then go to "HDMI Color Fomat"(choose "Auto")

PST073
