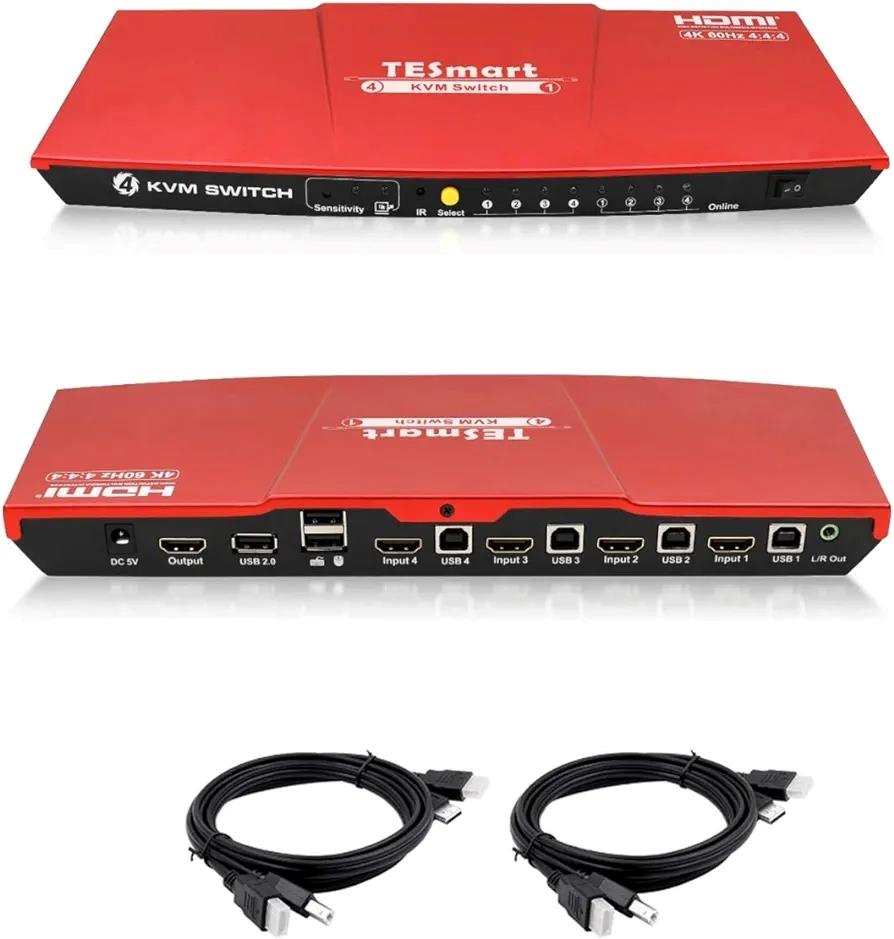

TESmart HDMI 4K@60Hz Ultra HD 4x1 HDMI KVM Switch 3840x2160@60Hz 4:4:4 with 2 Pcs 5ft KVM Cables Supports USB 2.0 Device Control up to 4 Computers/Servers/DVR
This 4x1 HDMI 4K@60Hz KVM Switch provides you with great flexibility in integrating cross-platform computer equipment easily. It makes you available to switch easily and reliably between any HDMI computers using one HDMI compliant display.
The 4x1 HDMI 4K@60Hz KVM Switch supports USB 2.0 hub and USB 2.0 keyboard /mouse. By using USB 2.0 hub ports on the KVM, you even can attach USB drive, printer, barcode scanner or other USB devices to the KVM. Switching can be controlled through variable methods, such as the front panel source selector buttons, IR signals and hot keys on keyboard. With EDID emulators in every input ports, keep PCs always have correct display information, prevent display settings changed while switching input ports. Support L/R audio output.
Note:
1.We recommend you use common basic keyboard&mouse, its Keyboard&Mouse USB ports can not compatible with these keyboard&mouse: some mechanical keyboard,bluetooth wireless keyboard&mouse,multimedia keys in multimedia keyboard,keyboard with custom key functions,keyboards with USB Hub.
2.Please make sure that the USB cable you are using does not exceed 10 ft.
3.Please Install CR2025 Battery Before Use Remote Control.
4 switching methods
Support front panel buttons, IR signals, keyboard hot keys and mouse gesture to control KVM switch.
How to use mouse gesture to switch inputs
If fast switching mode is activated, then double hit left or right bound of the screen with mouse pointer in 1second, KVM will switch to previous or next input.
Support HDR and Dolby Vision
It can provide more dynamic range and image details, and synthesize the final HDR image by using the LDR image with the best detail corresponding to each exposure time, which can better reflect the visual effect in the real environment.
Features:
*Available to use keyboard without any delay after switch input sources
*Support resolution up to 3840x2160@60Hz 4:4:4
*Support USB 2.0 for printers, USB drives etc...
*With EDID emulators in every input ports, keep PCs always have correct display information
*Support front panel buttons, IR signals, keyboard hot keys to control KVM switch
*Compatible with Unix/ Windows/ Debian/ Ubuntu/ Fedora/ Mac OS X/ Raspbian/ Ubuntu for Raspberry Pi and other Linux based system
*Support analog L/R audio output
