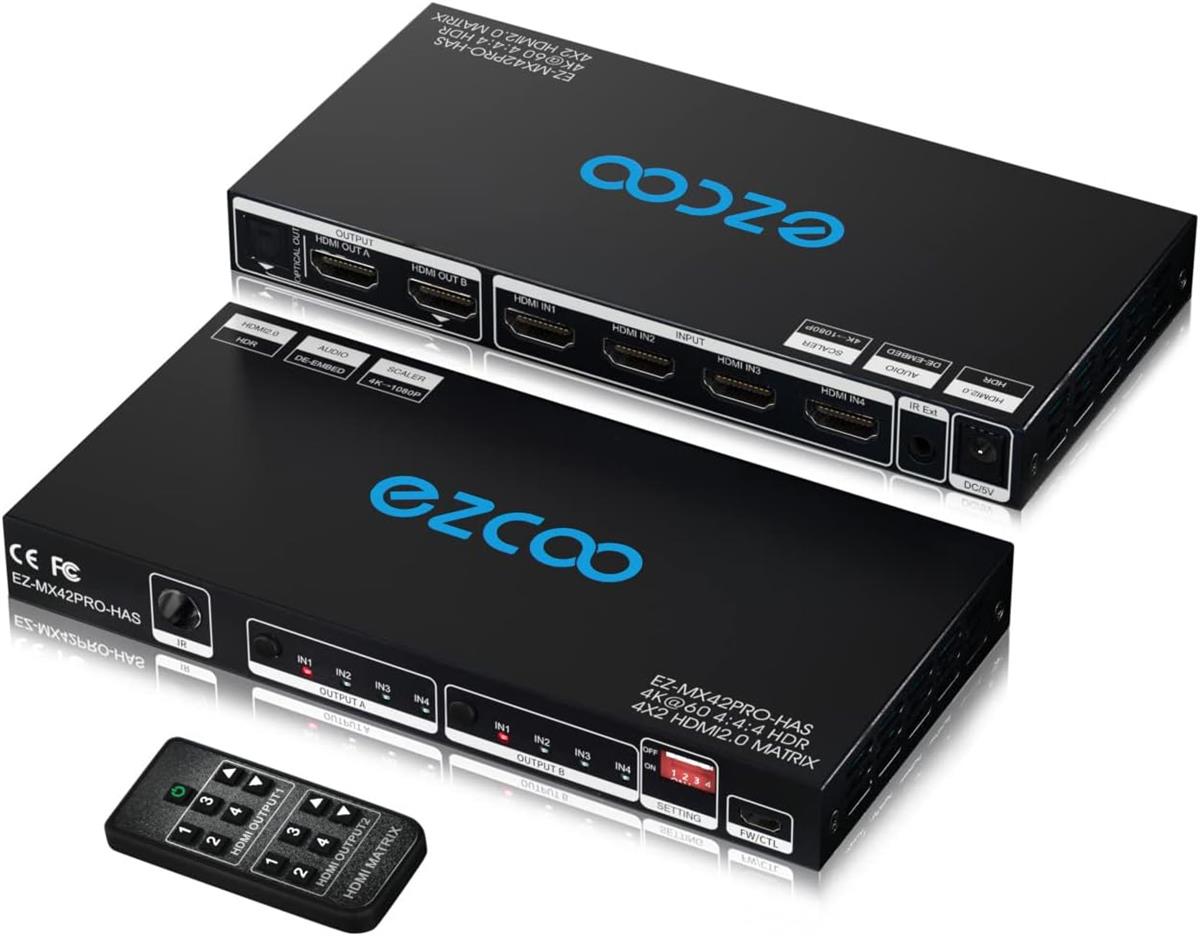

EZCOO HDMI 2.0 Matrix 4x2 4K 60Hz 4:4:4 18Gbps HDR Dolby Vision HDCP 2.2, Audio Breakout SPDIF Optical 5.1CH, Support HDMI Scaler 4K 1080P Work Together, with Firmware Upgrade

4K HDMI Matrix Switch 4x2 MX42HS distributes four HDMI sources to two HDMI displays reliably, supports HDMI2.0 4K@60Hz 4:4:4 18Gbps 8bit HDR Dolby Vision,Dolby Atmos.
CONTROL---RS232, IR Remote control, IR Extension cable. No CEC. Upgrade Firmware via micro-USB port.
SET EDID
1. Set EDID to 4K via DIP Switch, get Dolby Atmos and Dolby Vision work in sync, Simplify matrix operation step.
2. Set EDID to COPY 1, matrix will learning EDID from TV which is connected to OUT 1.
SET Down-Scale
1. Two HDMI outputs can down-scale 4K to 1080P only. NO Another resolution. When output 4K HDR Dolby Vision pls TURN OFF scaler. NOT down-scale HDR Dolby Vision.
2. SCALER switch 1 control OUT 1 down scaler; SCALER switch 2 control OUT 2 down scaler.
3. Supports 4K HDR TV and 1080p Capture Card work in sync.
.SPEC.
HDMI Video: HDMI 2.0,HDCP 2.2,4K 60Hz 4:4:4 8bit 18Gbps HDR Dolby Vision, 4K 60Hz 4:2:2 10bit HDR10, HDR Dolby Vision, 4K 2K/1080p/1080i,24bit/30bit,36bit deep color.
Brand: EZCOO
Availability: In Stock
Rs. 25,000


Overview

4K HDMI Matrix Switch 4X2 distributes four HDMI sources to two HDMI displays reliably, supports HDMI2.0 4K 60Hz 4:4:4 18Gbps 8bit HDR Dolby Vision, firmware upgrade via micro-USB port. HDMI OUT 1(A) can down-scale 4K to 1080P, 4K and 1080P TV can play together. Extra SPDIF Optical 5.1CH audio breakout offer high-end audio experience without TV connection.

  • Editable EDID via DIP Switch, supports 4K HDR TV video and 7.1CH Soundbar audio simultaneously. Also simplify matrix operation step.
  • Supports 4K HDR TV and 1080p Capture Card work at the same time.
  • DIP Switch Manual HDMI Scaler Setting.

Technical Information

HDMI video: HDMI 2.0,HDCP 2.2,4K 60Hz 4:4:4 8bit 18Gbps HDR Dolby Vision, 4K 2K/1080p/1080i, 24bit/30bit, 36bit deep color

HDMI audio: Dolby Digital 7.1CH Audio,Dolby Atmos,Dolby TrueHD,DTS:X,DTS-HD Master

HDMI Input cable: HDMI 2.0 standard cable, 15m AWG26

HDMI Output cable: HDMI 2.0 standard cable, 25m AWG26

Max bandwidth: 600MHz, Max baud rate: 18Gbps

Power Adapter: Input AC 100V-240V/ 50Hz,60Hz; Output DC 5V/2A

Dimension：6.4 x 3.7 x 0.8 in

Weight: 0.84 lb

HDMI MATRIX

Global TOP Level Chip Make it Excellent

  • High-end exclusive algorithm, advanced technology keep true UHD, no down sampling, no fading in RGB after downscaling.
  • Firmware Upgradeable HDMI 2.0 Matrix 4x2, 4K 60Hz YUV4:4:4 18Gbps HDR Dolby Vision, HDCP 2.2.
  • Editable HDMI audio and video channel management (EDID DIP switch); HDMI re-timing improve 4K HDR and multichannel audio system compatibility.

MX42 Connection way

Easy Set-up without Driver

  • Please connect 4K TV to HDMI OUT 2 (B), power on the matrix, it will read HDMI OUT 2 (B) signal.
  • Please connect 1080P TV to HDMI OUT 1 (A), and sound system to SPDIF optical port.
  • DIP Manual Scaler Setting. Manuel HDMI Scaler is better than auto scaler, which can keep monitors true 4K signal. (Even though monitors support 4K but still recommend 1080p as the best resolution.)
  • HDMI OUT 1(A) down-scale 4K to 1080P via DIP switch.
  • HDMI audio formats of Dolby Digital 7.1CH, Dolby Atmos, DTS:X, Dolby TrueHD, DTS-HD Master, LPCM 2.1/ 5.1/ 7.1CH.
  • Extra Audio DE-embed SPDIF Optical 5.1CH follows HDMI OUT 2(B) ,no need TV connection.
  • EZ-MX42HAS IR remote code is in Logitech Harmony database and functions without delay on HDMI sources.

HDMI MATRIX SIZE

Slim Design for Concealed Installation

  • 0.7inch thickness, compacted design for easy installation on wall or behind the TV.
  • All HDMI and power connection at one side, easy to wire trimming.
  • Solid build quality.
  • Provide two metal mounting ear with keyholes, Hook Loop, cable tie allowing various installation options.
  • Plug and Play. Fast Input Switching. No signal delay/ lag. Low Heat.

MX42 Compatibility

High Compatibility

  • HDMI Matrix switch works perfectly with Nvidia Shield, Xfinity box, Elgato Game Capture, Apple TV, Amazon Fire TV, PS4 Pro, X BoX series, Comcast, Soundbar, PC, Satellite Box, Cable Box, Android Box etc.
  • Ideally for Home Theater,Seminar,Conference,Workshop,Video Production,Club,Gaming etc.
  • When monitor is not HDR capable,there's no need to switch off the HDR functionality on HDMI sources, matrix simply doesn't pass, again one less thing to do.
  • HDMI input switching happens fast, around 1 second when same HDMI resolution; less than 3 seconds when different HDMI display brands and resolution.The switching time will be different base on different TV capability.
