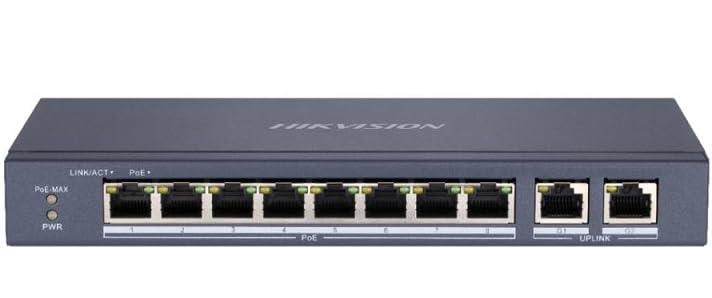

HIKVISION 8 Port Fast Ethernet Unmanaged POE Switch DS-3E0310P-E/M

8 Port Fast Ethernet Unmanaged POE Switch
8 × 10/100Mbps PoE ports, and and 2 × Gigabit RJ45 port.
IEEE 802.3at/af standard for PoE ports (Max. 60 W PoE output).
IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z and IEEE 802.3ab standard.
6 KV surge protection for PoE ports.
Up to 300 m long-range transmission.
Wire-speed forwarding.
Store-and-forward switching.
Solid high-strength metal shell.
Reliable fan-free design.
Brand: HIKVision
Warranty: 1 Year Warranty
Availability: In Stock
Rs. 12,300
  • General
  • ShellMetal material
  • Net Weight0.555 kg (1.22 lb)
  • Gross Weight1.20 kg (2.65 lb)
  • Dimensions (W × H × D)217.6 mm × 103.35 mm × 27.8 mm (8.57'' × 4.07'' × 1.09'')
  • Operating Temperature–10 °C to 40 °C (14 °F to 104 °F)
  • Storage Temperature–40 °C to 85 °C (–40 °F to 185 °F)
  • Operating Humidity5% to 95% (no condensation)
  • Relative Humidity5% to 95% (no condensation)
  • Power Supply48 VDC, 1.35 A
  • Max. Power Consumption65 W
  • Power Consumption In Idle5 W
  • Installation ModeDesk-Mounted,Wall-Mounted
  • Surge Protection6 KV
  • Network Parameters
  • Ports8 x 10/100 Mbps PoE port,2 × 10/100 Mbps RJ45 port
  • MAC Address Table8 K
  • Switching Capacity5.6 Gbps
  • Packet Forwarding Rate4.17 Mpps
  • Internal Cache4 Mbits
  • PoE Power Supply
  • PoE StandardIEEE 802.3af;IEEE 802.3at
  • PoE Power Pin8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)
  • PoE PortPoE: Ports 1 to 8
  • Max. Port Power30 W
  • PoE Power Budget60 W
  • Dialing Function
  • Long Range

    Ports 1 to 8 : up to 300 m.

    Long range performance may vary depend on camera model or cable condition.
