System |
Main Processor | Embedded processor |
Operating System | Embedded linux |
SMD Plus |
Performance | 4 channels |
AI Search | Search by target classification (Human, Vehicle) |
Video and Audio |
Analog Camera Input | 4 channels, BNC |
HDCVI Camera Input | 1080p@ 25/30 fps, 720p@25/30/50/60 fps |
AHD Camera Input | 1080p@ 25/30 fps, 720p@ 25/30 fps |
TVI Camera Input | 1080p@25/30 fps, 720p@25/30 fps |
CVBS Camera Input | PAL/NTSC |
IP Camera Input | 4+1 channels, each channel up to 2MP |
Audio In/Out | 1/1, RCA |
Two-way Talk | Reuse audio in/out, RCA |
Recording |
Compression | AI Coding/H.265+/H.265/H.264+/H.264 |
Resolution | 1080N; 720p; 960H; D1; CIF |
Record Rate | Main Stream: All channels 1080N/720P/960H/D1/CIF/(1~25/30fps) Sub stream: CIF (1~15 fps) |
Bit Rate | 32 kbps–4096 kbps per channel |
Record Mode | Manual; Schedule (General, Continuous); MD (Video detection: Motion Detection, Video Loss, Tampering); Alarm; Stop |
Record Interval | 1 min– 60 min (default: 60 min), Pre-record: 1 s–30 s, Post-record: 10 s–300 s |
Audio Compression | G.711A; G.711U; PCM |
Audio Sample Rate | 8 KHz, 16 bit per channel |
Audio Bit Rate | 64 kbps per channel |
Display |
Interface | 1 HDMI; 1 VGA |
Resolution | 1920 × 1080, 1280 × 1024, 1280 × 720 |
Multi-screen Display | When IP extension mode not enabled: 1/4 When IP extension mode enabled: 1/4/6 |
OSD | Camera title; Time; Video loss; Camera lock; Motion detection; Recording |
Network |
Interface | 1 RJ-45 Port (100 Mbps) |
Network Protocol | HTTP; HTTPS; TCP/IP; IPv4/IPv6; 3G/4G; UPnP; RTSP; UDP; SMTP; NTP; DHCP; DNS; IP Filter; PPPoE; DDNS; FTP; Alarm Server; P2P; IP Search (Supports Dahua IP camera, DVR, NVS, etc.) |
Max. User Access | 128 users |
Smart Phone | iPhone; iPad; Android |
Interoperability | ONVIF 16.12, CGI Conformant |
Video Detection and Alarm |
Trigger Events | Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips |
Video Detection | Motion Detection, MD Zones: 396 (22 × 18), Video Loss, Tampering and Diagnosis |
Alarm input | N/A |
Relay Output | N/A |
Playback and Backup |
Playback | 1/4 |
Search Mode | Time/Date; Alarm; MD and Exact Search (accurate to second) |
Playback Function | Play; Pause; Stop; Rewind; Fast play; Slow Play; Next File; Previous File; Next Camera; Previous Camera; Full Screen; Repeat; Shuffle; Backup Selection; Digital Zoom |
Backup Mode | USB Device/Network |
Storage |
Internal HDD | 1 SATA port, up to 6 TB capacity |
eSATA | N/A |
Auxiliary Interface |
USB | 2 USB ports (USB 2.0) |
RS485 | N/A |
RS232 | N/A |
Electrical |
Power Supply | DC 12 V/1.5 A |
Power Consumption (Without HDD) | < 7="" /> |
Construction |

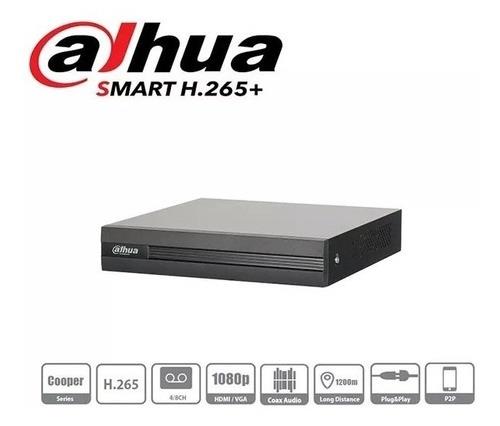

Dimensions | Cooper 1U, 198 mm × 202.9 mm × 41.5 mm (7.81'' × 7.99'' × 1.63'') |
Net Weight (without HDD) | 0.57 kg (1.25 lb) |
Gross Weight | 1.08 kg (2.38 lb) |
Installation | Desktop installation |
Environmental |
Operating Conditions | –10 °C to +45 °C (+14 °F to +113 °F), 0%–90% (RH) |
Storage Conditions | –20 °C to +70 °C (–4 °F to +158 °F), 0%–90% (RH) |
Third-party Support |
Third-party Support | Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and more |
Certifications |
Certifications | FCC: Part 15 Subpart B |
CE: CE-LVD: EN 60950-1/IEC 60950-1 CE-EMC: EN 61000-3-2; EN 61000-3-3; EN 55032; EN 50130; EN 55024 |
