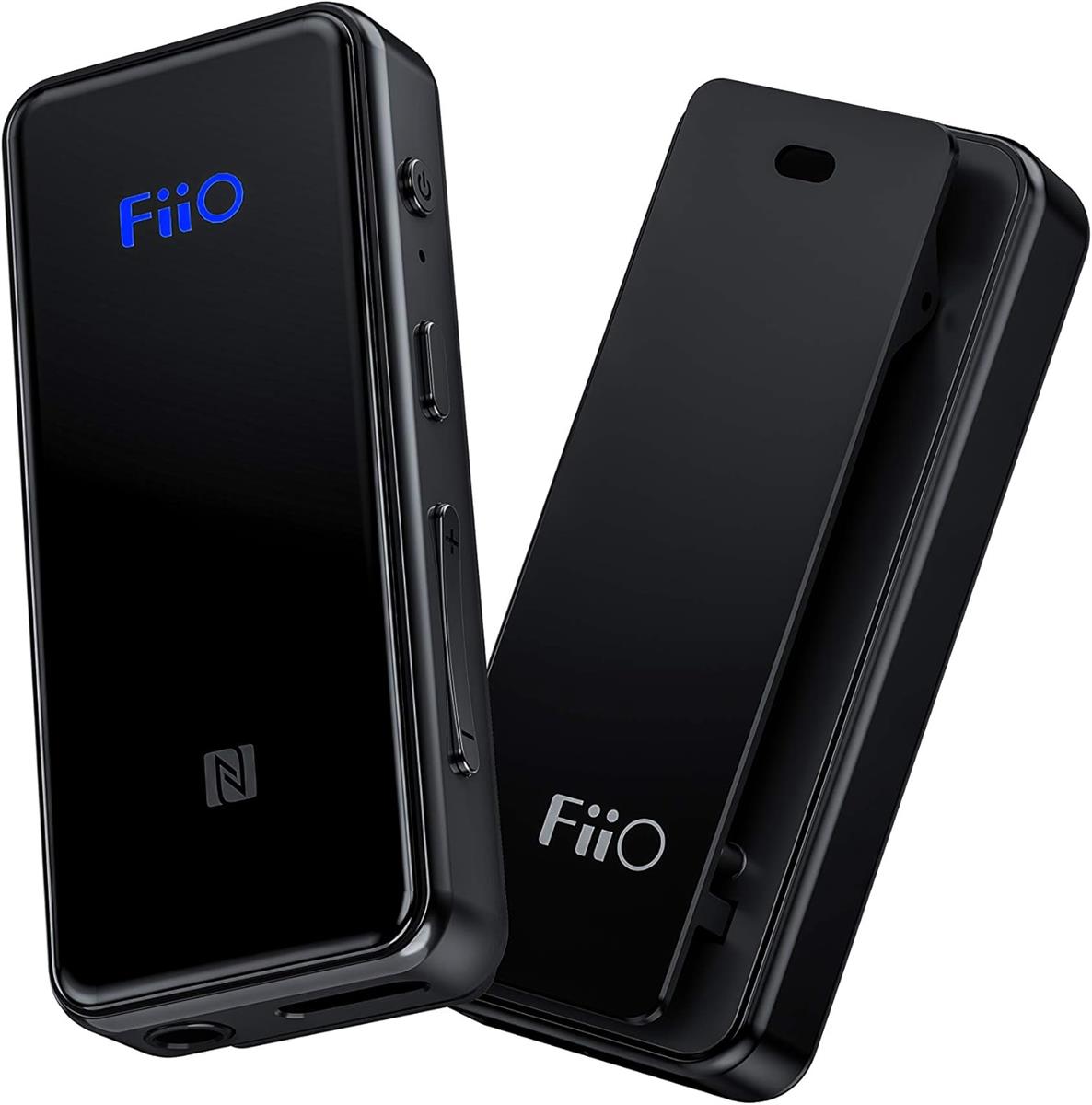

FiiO BTR3 HiFi Bluetooth Receiver&USB DAC | aptX/aptX HD/aptX LL/LDAC/AAC/HWA Support, for Home TV,Speaker,Car Stereo, NFC Pairing, Type C Port and 3.5mm Out, AK4376A 192K/24B DAC chip

World's first Bluetooth amp to support all wireless sound formats: AAC, SBC, aptX, aptX LL, aptX HD, LDAC, and LHDC (HWA)
Premium Qualcomm CSR8645 Bluetooth chip + independent AK4376A DAC
New Type-C connector with USB DAC functionality+11 hour of continuous pleasure at a full charge
Can be remotely controlled via FiiO Music app
Bluetooth indicator light + one-touch NFC pairing+Call up Siri in iOS
Brand: A2Z
Warranty: No Warranty
Availability: In Stock
Rs. 12,500

FAQ

1.Does the BTR3 support idle time power off?

A: Yes, it supports idle time power off for saving power. When it's connected to other devices via Bluetooth, it will enter standby mode if no music playing. When it's not paired with other device via Bluetooth, it will power off automatically after 2 minutes.

2. How to pair the smart phone with BTR3?

A: 1. Unlock your smart phone and turn on Bluetooth; 2. BTR3 is in pairing mode which means the blue and red lights flashing alternately.

To enter pairing mode:

a. After powered on for the first time: the BTR3 would automatically enter the pairing mode, and the red and blue lights will flash alternately.

b. Force the BTR3 to enter Pairing mode: Hold the button A for about 5 seconds when the device is on, and the red and blue lights will flash alternately.

3. Then the BTR3 will appear on the list of Bluetooth device of the phone, and just click it to pair with the BTR3.

3. Can the BTR3 work as a DAC for the computer, and how?

A: Yes, the BTR3 can work as a DAC for the computer.

Auto mode: Power on the BTR3, and connect it to the computer, then select it as the audio output device to play music; the white light will stay steadily on; Manual mode: Power on the BTR3, and connect it to the computer,  then quickly press the Power button for 3 times; then white light will stay steadily on.

4. How to reset BTR3?

A: When the BTR3 is frozen, please try to hold the Power button for at least 10 seconds to reset the BTR3.

5. How to get BTR3 displaying in FiiO Music app?

A: Here is steps to get BTR3 displaying in FiiO Music app: 1. The BTR3 is required to upgrade to the latest version 1.0 (v1030): and FiiO Music app should be also updated to latest version 1.0.4 firstly. 2. Please go to FiiO Music app Setting to set "HWA" to OFF, after it is updated to v1.0.4. (At present, the BTR3 is not comptiable with HWA well. The BTR3 option would not appear if the HWA was ON.) 3. After connecting the BTR3 with your smart phone via Bluetooth, "FiiO BTR3" option will display in FiiO Music app Settings, just like the one on Picture 1. You could see all the BTR3's settings as shown on Picture 2 after tapping "FiiO BTR3" option.

2

3

4

Qualcomm CR8675 Bluetooth chip

The Qualcomm CR8675 Bluetooth chip used in the BTR3 is a premium low-power solution designed for enhanced audio applications with support for 24-bit transmission and processing, thanks to its 120MHz DSP.

High-performance AK4376A DAC

The AK4376A DAC in the BTR3, with its extremely low -107 dB distortion and extremely high 124 dB SNR, means that you will be able to catch every last nuance and detail in your music.

Unmatched Bluetooth format support

The BTR3, using Bluetooth 4.2, is the first Bluetooth amplifier in the world to support all current wireless audio codecs – such as AAC, SBC, aptX, aptX Low Latency, aptX HD, LDAC, and LHDC.

5

6

7

An artisan’s touch

The aluminum alloy body wrapped in 2.5D glass and the oleophobic coating that keeps off fingerprints give the compact BTR3 an elegant look that would not be out of place in a specialty artisan’s shop.

RGB indicator light

SBC: Blue light flashing AAC: Cyan light flashing aptX/aptX low latency: Purple light flashing aptX HD: Yellow light flashing LDAC/DAC: White light flashing/stays steadily on LHDC: Green light flashing

11 hours of playback

The 300 mAh battery in the BTR3 takes only 1.5 hours to fully charge but allows for a lengthy 11 hours of playback!

8

9

10

Built-in microphone

The BTR3 is equipped with Qualcomm's cVc noise cancellation technology, which automatically adjusts the microphone and actively suppresses background noise so that your call comes through as clear and audible as possible.

One-touch NFC pairing

The BTR3 can be paired to other compatible devices with just a simple tap using the NFC wireless short-range communication protocol, entirely avoiding the cumbersome traditional pairing process.

Connect to your car

You can connect your smartphone to the BTR3 via Bluetooth, and then connect the BTR3 to your car's audio system via a 3.5mm audio cable.

11

12

13

Rejuvenate your home theater

Simply connect your Bluetooth source to the BTR3, and then connect the BTR3 to your home audio system with a 3.5mm audio cable.

Smart assistant

Call up Siri in iOS whenever you want simply with a double click of the multifunctional button the BTR3.

Type-C connector supports USB DAC

The BTR3 adopts the Type-C connector, which is easier to use than ever with its symmetric connector, allow you to insert a cable either way. USB DAC functionality is now also supported – no drivers needed here, simply plug and play!
