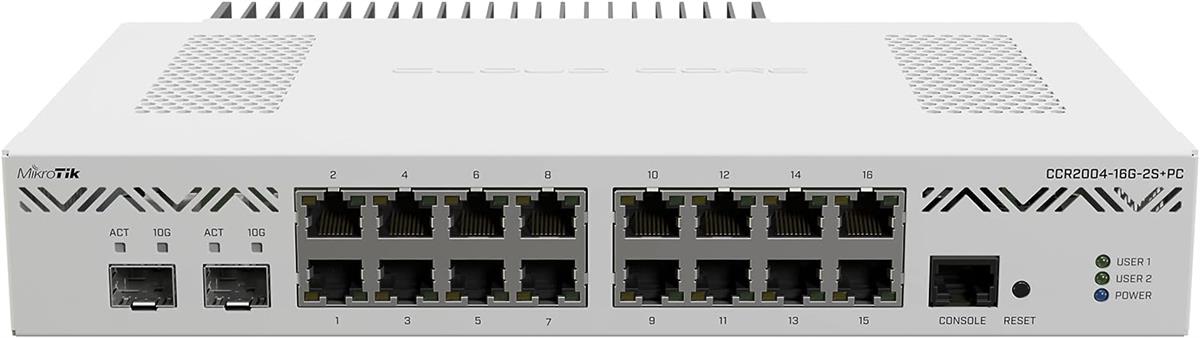

Mikrotik CCR2004-16G-2S+PC Ethernet Router 16x Gigabit Ethernet Ports, 2x10G SFP+ Cages.

The new router has 18 wired ports, including 16x Gigabit Ethernet ports and two 10G SFP+ cages. It also has a RJ-45 console port on the front panel.
Each switch chip has a 10 GBPS full-duplex line connected to the CPU.
This CCR also features the Amazon Annapurna Labs Alpine v2 CPU with 4x 64-bit ARMv8-A Cortex-A57 cores.
Boards come with 4GB of DDR4 RAM and 128MB of NAND storage.
The perfect all-in-one solution for small and medium-sized businesses. Easy and efficient.
Brand: MIKROTIK
Availability: On Order Only
Rs. 155,000

Specifications

Details
Product codeCCR2004-16G-2S+
ArchitectureARM 64bit
CPUAL32400
CPU core count4
CPU nominal frequency1700 MHz
Switch chip model88E6191X
Dimensions443 x 210 x 44 mm
RouterOS license6
Operating SystemRouterOS v7
Size of RAM4 GB
Storage size128 MB
Storage typeNAND
MTBFApproximately 200'000 hours at 25C
Tested ambient temperature-20°C to 60°C
IPsec hardware accelerationYes
Suggested price$465.00

Powering

Details
Number of AC inputs2
AC input range100-240
Frequency (Hz)50-60
Max power consumption48 W
Max power consumption without attachments35 W
Cooling type2 fans

Ethernet

Details
10/100/1000 Ethernet ports16

Fiber

Details
SFP+ ports2

Peripherals

Details
Serial console portRJ45
Number of USB ports1
USB Power ResetYes
USB slot typeUSB 3.0 type A
Max USB current (A)0.9

Other

Details
CPU temperature monitorYes
PCB temperature monitorYes
Voltage MonitorYes

Certification & Approvals

Details
CertificationCE, EAC, ROHS
IPIP20
