AMD FirePro V7900 SDI 2GB GDDR5 Quad DP PCI-Express Graphics Card Graphics Cards (Used)

About this item
AMD Eyefinity multi-display technology
4x Display Port 1.2
256-bit memory interface
160 GB/s memory bandwidth
1,280 stream processors
40962160 Pixel Display Port Resolution
25601600 Pixel Dual Link DVI Resolution19201200 Pixel Single Link DVI Resolution
19201200 Pixel Single Link DVI Resolution
Brand: AMD
Warranty: 7 Days Checking Warranty
Availability: In Stock
Rs. 28,000

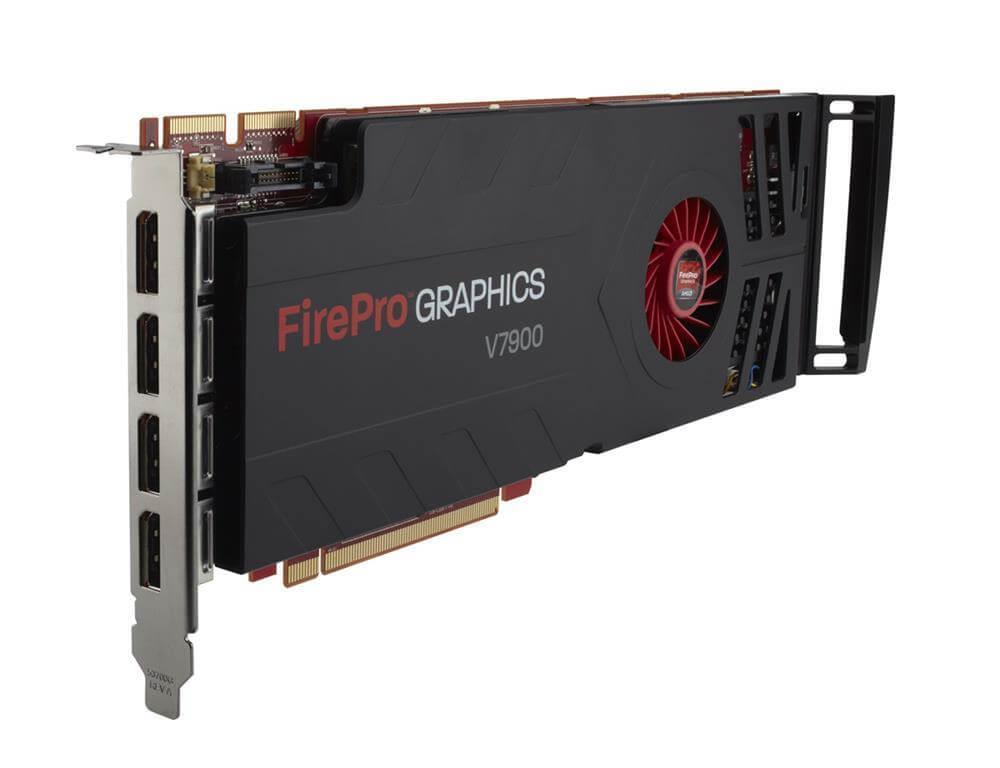

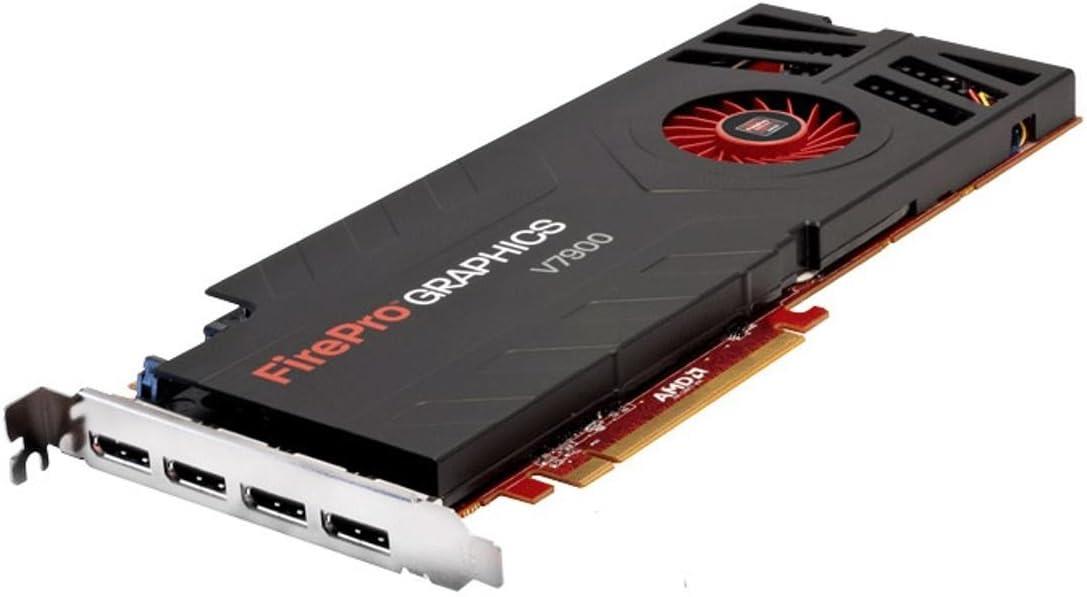

AMD FirePro V7900

Graphics Processor
Cayman

Cores
1280

TMUs
80

ROPs
32

Memory Size
2 GB

Memory Type
GDDR5

Bus Width
256 bit
Front GPU Chip
I/O
I/O
Top
Top
Back
Back
The FirePro V7900 was a professional graphics card by AMD, launched on May 24th, 2011. Built on the 40 nm process, and based on the Cayman graphics processor, in its Cayman PRO GL variant, the card supports DirectX 11.2. The Cayman graphics processor is a large chip with a die area of 389 mm² and 2,640 million transistors. Unlike the fully unlocked Radeon HD 6970, which uses the same GPU but has all 1536 shaders enabled, AMD has disabled some shading units on the FirePro V7900 to reach the product's target shader count. It features 1280 shading units, 80 texture mapping units, and 32 ROPs. AMD has paired 2,048 MB GDDR5 memory with the FirePro V7900, which are connected using a 256-bit memory interface. The GPU is operating at a frequency of 725 MHz, memory is running at 1250 MHz (5 Gbps effective).
Being a single-slot card, the AMD FirePro V7900 draws power from 1x 6-pin power connector, with power draw rated at 150 W maximum. Display outputs include: 4x DisplayPort 1.2. FirePro V7900 is connected to the rest of the system using a PCI-Express 2.0 x16 interface. The card measures 279 mm in length, 111 mm in width, and features a single-slot cooling solution.
