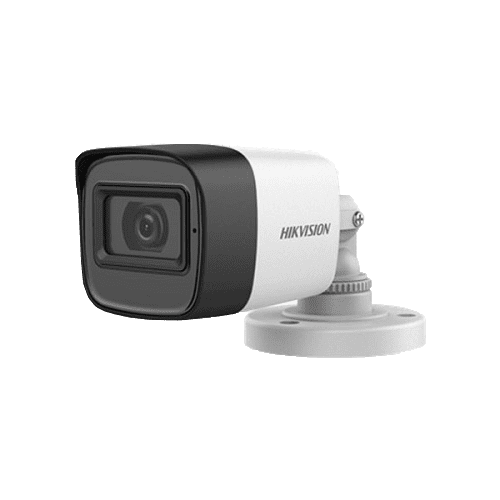

HIKVision 2MP DS-2CE16D0T-EXIPF Fixed Mini Bullet Camera

• Camera
• ModelDS-2CE16D0T-EXIPF
• Product Name2MP Outdoor EXIR Fixed Mini Bullet Camera
• Image Sensor2 MP CMOS
• Signal SystemPAL/NTSC
• Resolution1920 (H) × 1080 (V)
• Frame Rate

  TVI: 1080p@25fps/30fps

  AHD: 1080p@25fps/30fps

  CVI: 1080p@25fps/30fps

  CVBS: PAL/NTSC

• Min. Illumination0.02 Lux @ (F1.2, AGC ON), 0 Lux with IR
• Shutter TimePAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
• Lens2.8 mm, 3.6 mm Fixed Lens
• Field Of View

  2.8 mm, horizontal FOV: 96.5°, vertical FOV: 48.9°, diagonal FOV: 120.5°

  3.6 mm, horizontal FOV: 76.9°, vertical FOV: 40.6°, diagonal FOV: 92.0°

• Lens MountM12
• Day & NightIR Cut Filter
• WDR (Wide Dynamic Range)Digital WDR
• Angle AdjustmentPan: 0° to 360°, Tilt: 0° to 90°, Rotation: 0° to 360°

• Image
• Image ModeSTD/HIGH-SAT
• AGCYes
• Day/Night ModeAuto/Color/BW (Black and White)
• White BalanceAuto
• AE (Auto Exposure) ModeBLC;Global;DWDR
• Noise Reduction2D DNR
• LanguageEnglish
• FunctionSharpness;Smart IR;Mirror;Brightness

• Interface
• Video OutputSwitchable TVI/AHD/CVI/CVBS

• General
• Operating Conditions-40°C to 60°C (-40°F to 140°F), Humidity: 90% or less (non-condensing)
• Power Supply12 VDC ± 25%
• ConsumptionMax. 3.3 W
• Protection LevelIP67
• MaterialPlastic
• IR RangeUp to 20 m
• CommunicationHIKVISION-C
• Dimension138.8 mm × 60.9 mm × 57.9 mm (5.465" × 2.389" 2.278")
• WeightApprox. 145 g (0.32 lb.)
