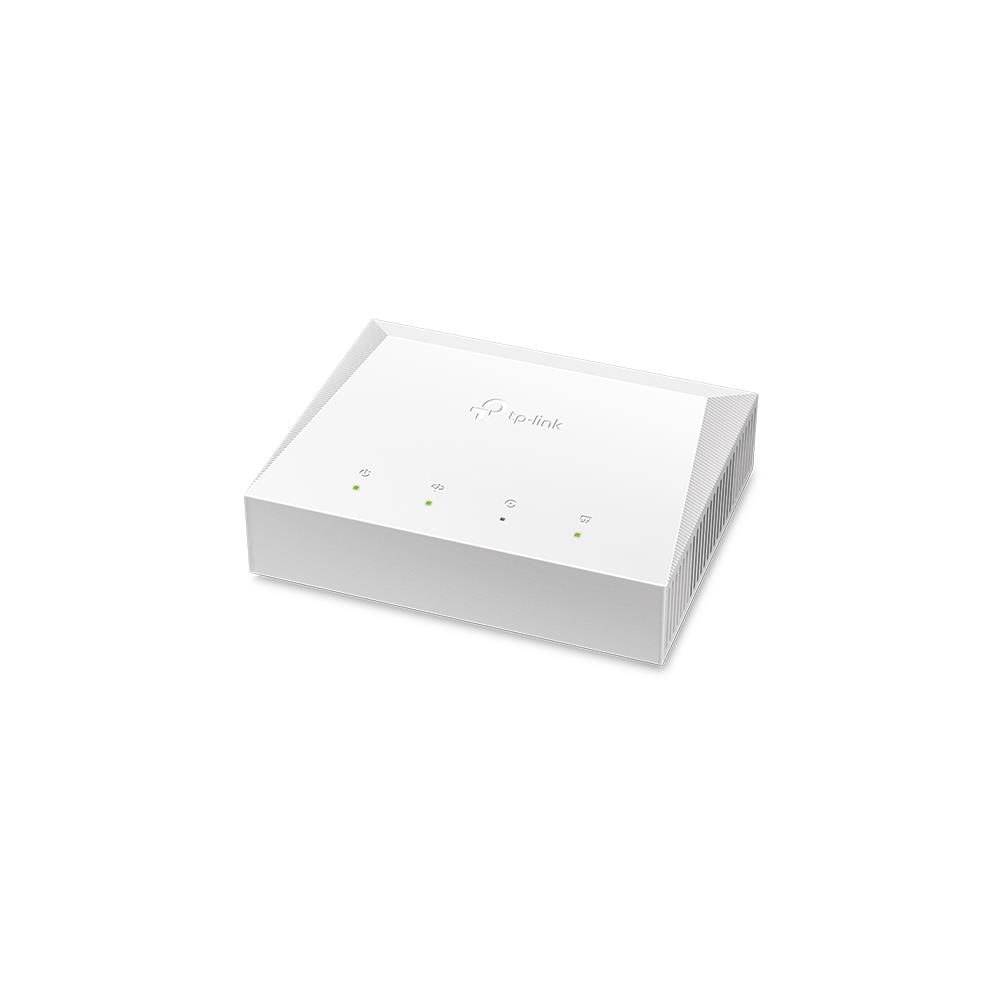

TP-Link XZ000-G7 XPON SFU 1xGbE LAN 1xSC/APC PON Gigabit Terminal

Gigabit Internet Access: One PON port and one gigabit LAN port provide fast transfer speeds*
XPON Support: EPON + GPON dual mode offers greater flexibility for fiber internet access.
Ease of Use: Quick and hassle-free installation with intelligent power-saving.
Remote Management: Supports the OMCI (ONU Management Control Interface) protocol for centralized configuration and Management.
Brand: TP-Link
Warranty: 1 Year Warranty
Availability: Out of Stock
Rs. 3,800
HARDWARE FEATURES
Interface1× PON Port ( SC/UPC)
1× 10/100/1000 Mbps RJ45 Port
Button1× RESET Button
External Power Supply9VDC/0.6A
IEEE StandardsIEEE 802.3, 802.3u, 802.1p, 802.1Q
Data RatesDownstream Speeds: 2.488 Gbps (GPON), 1.25 Gbps (EPON)*
Upstream Speeds: 1.244 Gbps (GPON), 1.25 Gbps (EPON)*
WavelengthUpstream: 1310 nm
Downstream: 1490 nm
Dimensions ( W x D x H )3.7 × 3.0 × 1.2 in (95.0 × 75.0 × 29.3 mm)
Distance0–20 Km Max
GPON StandardsITU-T G.988, G.984.1, G.984.2, G.984.3, G.984.4
Optical ModuleClass B+
ReceiverSuper-TIA
TransmitterDFB Laser
SOFTWARE FEATURES
Advanced FeaturesUpstream and Downstream FEC,
Dynamic Bandwidth Allocation(DBA) support NSR/SR,
Up to 16 T-CONTs and 256 GEM Ports,
Optical power detection,
Dying Gasp,
Terminal Silent mechanism
VLAN802.1Q tag VLAN, VLAN transparent mode/VLAN translation mode/VLAN trunk mode, Authentication based on SN and Password, VLAN Auto Detect
SecurityAES Encryption, Packet Filter based on VLAN
ManagementLocal management: WebGUI, Telnet
Remote management: OMCI
IGMPIGMP v1/v2/v3
OTHERS
Package ContentsXPON Terminal XZ000-G7
Power Adapter
Quick Installation Guide
RequirementsMicrosoft Windows 98SE/NT/2000/XP/Vista™/7/8/8.1/10, MAC OS, NetWare, UNIX or Linux
Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser
Subscription with an internet service provider (for internet access)
CertificationsCE, RoHS
EnvironmentOperating Temperature: 0℃–40℃ (32℉–104℉)
Storage Temperature: -40℃–60℃ (-40℉–140℉)
Operating Humidity: 10%–90% non-condensing
Storage Humidity: 5%–90% non-condensing
